BLUE STRIPE® Link Sticks
Documentation
A New Addition to the BLUE STRIPE® Line
BLUE STRIPE® Link Sticks are available in various configurations. The Swivel Eye, Hook & Swivel Eye, and Hot Stick Operable Hook & Swivel Eye are load rated to 4,000 lbs. and feature 1.25” diameter foam filled fiberglass.
Applications include:
- Insulating strap hoists while tensioning lines.
- Insulating bucket jib while lifting or pulling lines.
BLUE STRIPE® Link Stick with Swivel Eyes
How To Order
| ITEM NUMBER | FIBERGLASS LENGTH | DIAMETER | LOAD LIMIT |
|---|---|---|---|
| USLS-006-SWVL | 6” (.2 M) | 1.25” | 4,000 lb |
| USLS-012-SWVL | 12” (.3 M) | 1.25” | 4,000 lb |
| USLS-015-SWVL | 15” (.4 M) | 1.25” | 4,000 lb |
| USLS-018-SWVL | 18” (.5 M) | 1.25” | 4,000 lb |
| USLS-024-SWVL | 24” (.6 M) | 1.25” | 4,000 lb |
BLUE STRIPE® Link Stick with Safety Hook & Swivel Eye
How To Order
| ITEM NUMBER | FIBERGLASS LENGTH | DIAMETER | LOAD LIMIT |
|---|---|---|---|
| 6” (.2 M) | 1.25” | 4,000 lb |
USLS-012-HOOK | 12” (.3 M) | 1.25” | 4,000 lb |
USLS-015-HOOK | 15” (.4 M) | 1.25” | 4,000 lb |
USLS-018-HOOK | 18” (.5 M) | 1.25” | 4,000 lb |
USLS-024-HOOK | 24” (.6 M) | 1.25” | 4,000 lb |
BLUE STRIPE® Link Stick with
Stick Operable Safety Hook & Swivel Eye
How To Order
| ITEM NUMBER | FIBERGLASS LENGTH | DIAMETER | LOAD LIMIT |
|---|---|---|---|
USLS-006-STOP | 6” (.2 M) | 1.25” | 4,000 lb |
USLS-012-STOP | 12” (.3 M) | 1.25” | 4,000 lb |
USLS-015-STOP | 15” (.4 M) | 1.25” | 4,000 lb |
USLS-018-STOP | 18” (.5 M) | 1.25” | 4,000 lb |
USLS-024-STOP | 24” (.6 M) | 1.25” | 4,000 lb |
BLUE STRIPE® Link Stick with Crossarm & Swivel Eye
The BLUE STRIPE® Link Stick with Crossarm & Swivel Eye is load rated to 1,500 lbs., constructed from 1.25” diameter foam filled fiberglass and can be installed or removed via hot stick.
Applications include:
- Insulating strap hoists while tensioning lines.
- Fitting directly around crossarms, eliminating the need to install a sling in order to create an attachment point.
How To Order
| ITEM NUMBER | FIBERGLASS LENGTH | DIAMETER | HOOK SIZE | LOAD LIMIT |
|---|---|---|---|---|
| USLS-022-XARM | 22” (.6 m) | 1.25” | 5” (Fits crossarms up to 3.75” x 4.75”) | 1,500 lb |

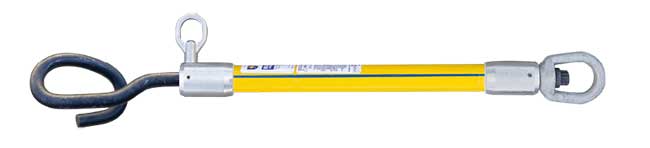

BLUE STRIPE® Link Stick with
Pigtail Hook & Swivel Eye | Heavy Duty Pigtail Hook and Swivel Eye
The BLUE STRIPE® Link Stick with Pigtail and Swivel Eye features 1.25” diameter foam filled fiberglass, and can be installed or removed via hot stick.
Applications include:
• Pulling and lifting line spans for creating work clearance or repositioning phases.
• Allows quick installation onto line without needing to operate a latch.
• Quicker installation than a regular hook in situations where a true positive lock is not necessary.
How To Order
| ITEM NUMBER | FIBERGLASS LENGTH | DIAMETER | LOAD LIMIT | CONDUCTOR SIZE |
|---|---|---|---|---|
>USLS-006-PIG | 6“ (.2M) | 1.25” | 2,000 lb | Up to 1” Diameter |
USLS-012-PIG | 12” (.3M) | 1.25” | 2,000 lb | Up to 1” Diameter |
USLS-015-PIG | 15” (.4M) | 1.25” | 2,000 lb | Up to 1” Diameter |
USLS-018-PIG | 18” (.5M) | 1.25” | 2,000 lb | Up to 1” Diameter |
USLS-024-PIG | 24” (.6M) | 1.25” | 2,000 lb | Up to 1” Diameter |
How To Order
| ITEM NUMBER | FIBERGLASS LENGTH | DIAMETER | LOAD LIMIT | CONDUCTOR SIZE |
|---|---|---|---|---|
USLS-006-HOG | 6“ (.2M) | 1.25” | 3,500 lb | Up to 1.5” Diameter |
USLS-012-HOG | 12” (.3M) | 1.25” | 3,500 lb | Up to 1.5” Diameter |
USLS-015-HOG | 15” (.4M) | 1.25” | 3,500 lb | Up to 1.5” Diameter |
USLS-018-HOG | 18” (.5M) | 1.25” | 3,500 lb | Up to 1.5” Diameter |
USLS-024-HOG | 24” (.6M) | 1.25” | 3,500 lb | Up to 1.5” Diameter |
BLUE STRIPE® Link Stick with Conductor Lift & Swivel Eye
The BLUE STRIPE® Link Stick with Conductor Lift & Swivel Eye is load rated to 1,500 lbs., constructed from 1.25” diameter foam filled fiberglass and accepts conductor sizes up to 1.25″ diameter. The ConductorLift features a one piece machined aluminum frame which has a unique spring loaded gate. The Conductor Lift’s gate operates without latches, locks or pins allowing it to quickly and easily clip on to conductors. The heavy duty pulley allows smoother operation while moving along conductors.
Applications include:
- Allows smoother operation while moving along conductors
- Specifically designed for construction, repairs and maintenance on overhead conductors
How To Order
| ITEM NUMBER | FIBERGLASS LENGTH | DIAMETER | LOAD LIMIT | CONDUCTOR SIZE |
|---|---|---|---|---|
| USLS-012-CL | 12“ (.3 M) | 1.25” | 1,500 lb | Up to 1.25” Diameter |
| USLS-024-CL | 24" (.6 M) | 1.25” | 1,500 lb | Up to 1.25” Diameter |
