Grounds Tester
High Current, 600 amp AC Voltage Grounds Tester

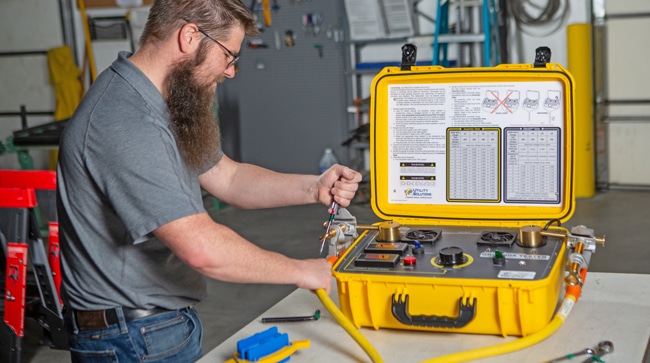

The Grounds Tester utilizes a voltage (AC) at high current to measure voltage drop across personal grounding equipment. Pass/fail determinations are made by comparing the voltage drop to convenient charts in the manual and on the case lid.
Equipped with REACH™ technology and an integrated voltmeter, a ground assembly can be tested at various points to quickly troubleshoot defects in the assembly.
The Grounds Tester can evaluate cable sizes from #2 to double 4/0 and plugs into a standard 120V, 15 amp receptacle and includes thermal overload protection. Optional adapters are available from Utility Solutions for use with the Grounds Tester.
| MODEL | WIDTH | HEIGHT | DEPTH | WEIGHT |
|---|---|---|---|---|
| USGT-600 | 20″ | 15″ | 7.5″ | 50 lb |
How To Order
| ITEM NUMBER | DESCRIPTION |
|---|---|
| USGT-600 | PROTECTIVE GROUND TESTER |
| USGT-600-15KVBUSHING | 15kV LOADBREAK BUSHING ADAPTER |
| USGT-600-15KVELBOW | 15kV LOADBREAK ELBOW ADAPTER |
| USGT-600-27KVBUSHING | 27kV LOADBREAK BUSHING ADAPTER |
| USGT-600-27KVELBOW | 27kV LOADBREAK ELBOW ADAPTER |

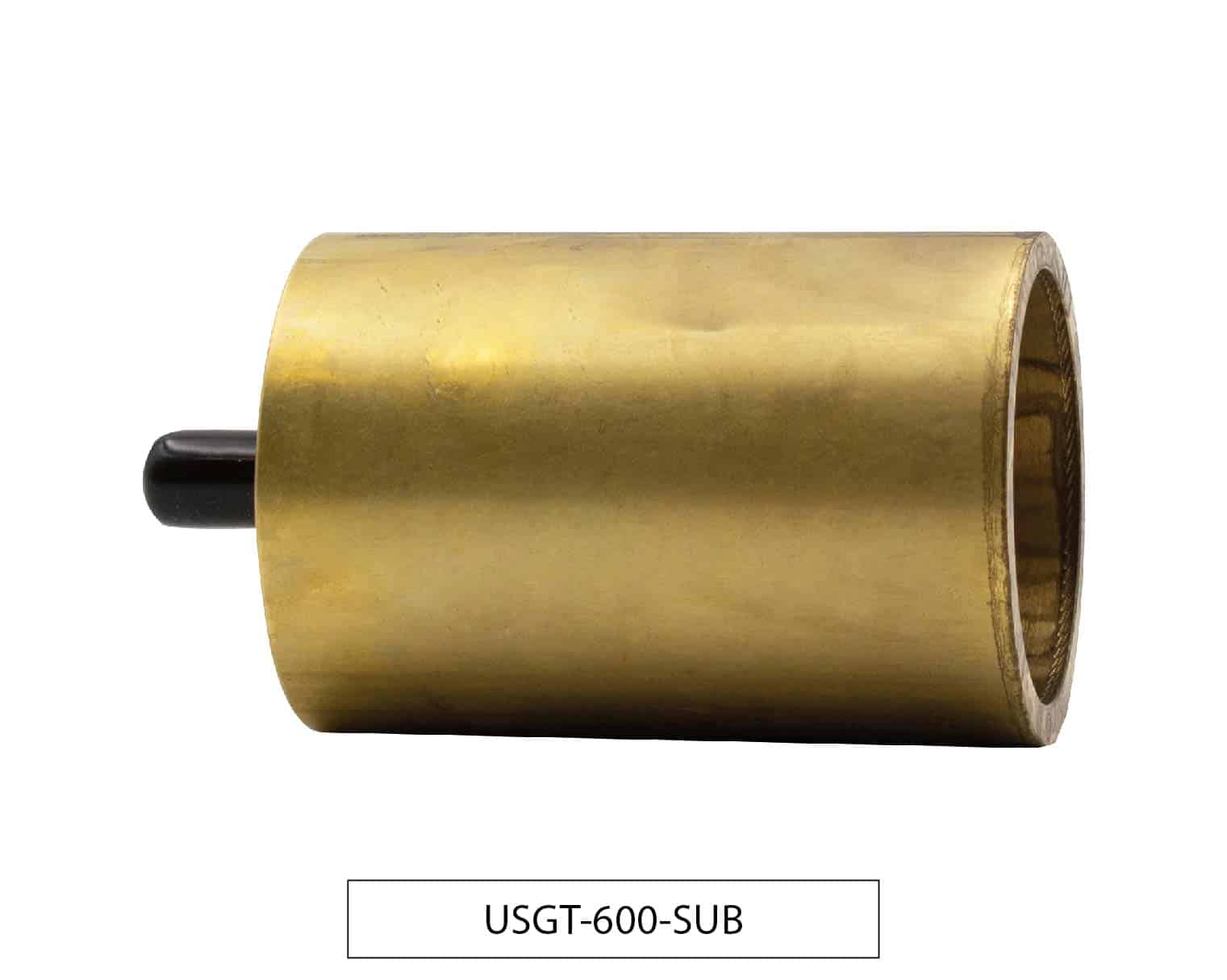

| USGT-600-SUB | 3 1/8" OD SUBSTATION CLAMP ADAPTER |
Shipping Notice: The USGT-600 must be shipped motor freight on a pallet. Failure to do so may result in a claim for loss or damage.
