A Revolutionary New Design

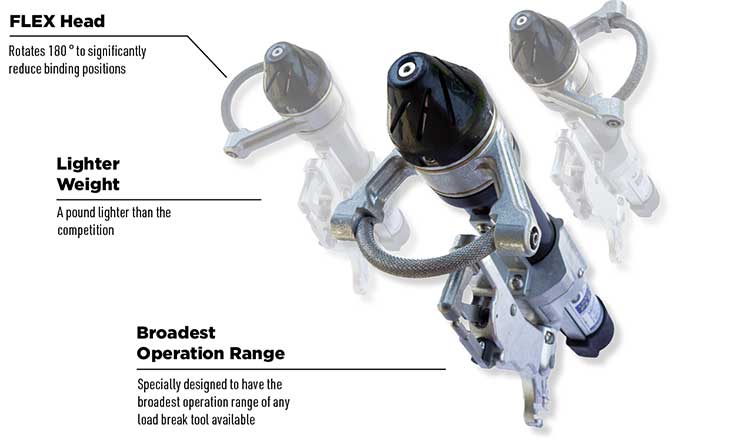

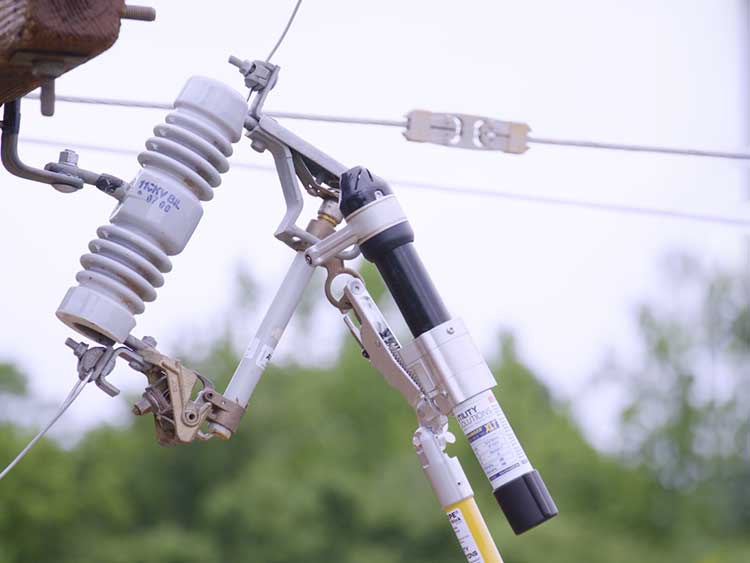

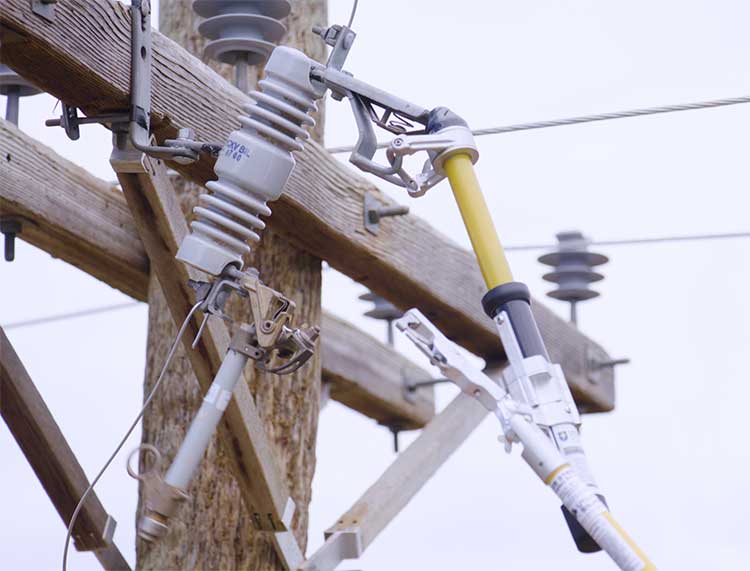

The LOAD-RANGER® FLEX-LT® is the latest innovation in load break tools. With a patented rotating FLEX head, the innovative design of the LOAD-RANGER® FLEX-LT® allows a much broader range of operation than traditional load break tools, and greatly reduces or eliminates binding positions and tool stresses while improving flexibility when attaching the tool to an arcing horn.

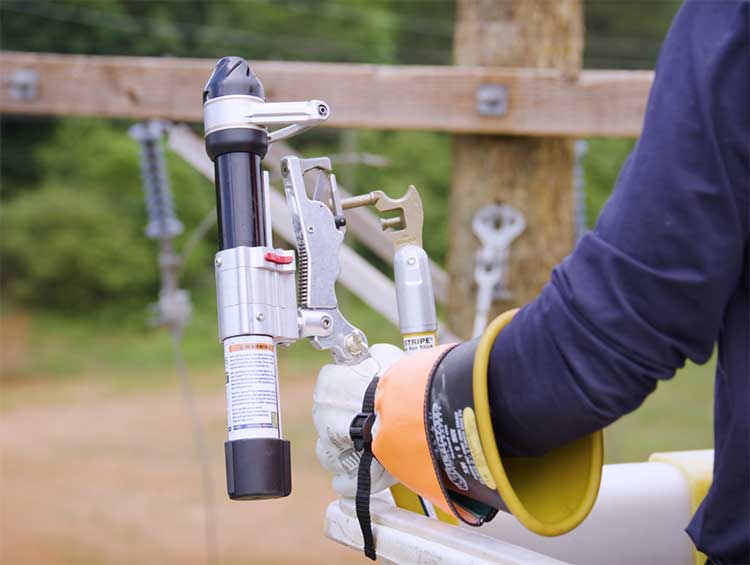

The LOAD-RANGER® FLEX-LT® is designed with linemen in mind. Coupled with the rotating FLEX head, the No-Pinch red reset trigger is located prominently on the side of the tool, making it easier to reset while wearing gloves.
All tools are built with heavy duty components that are machined, not cast. The tool has been rigorously tested and will stand up to repeated use. The LOAD-RANGER® FLEX-LT® is specifically engineered to be inspected and serviced in minutes using only 2 tools, saving time and money.
The LOAD-RANGER® FLEX-LT® is available in 27 kV and 38 kV system voltages.
How To Order
Standard Overhead Arm
| ITEM NUMBER | DESCRIPTION | MAXIMUM VOLTAGE | MAXIMUM AMPERAGE | WEIGHT |
|---|---|---|---|---|

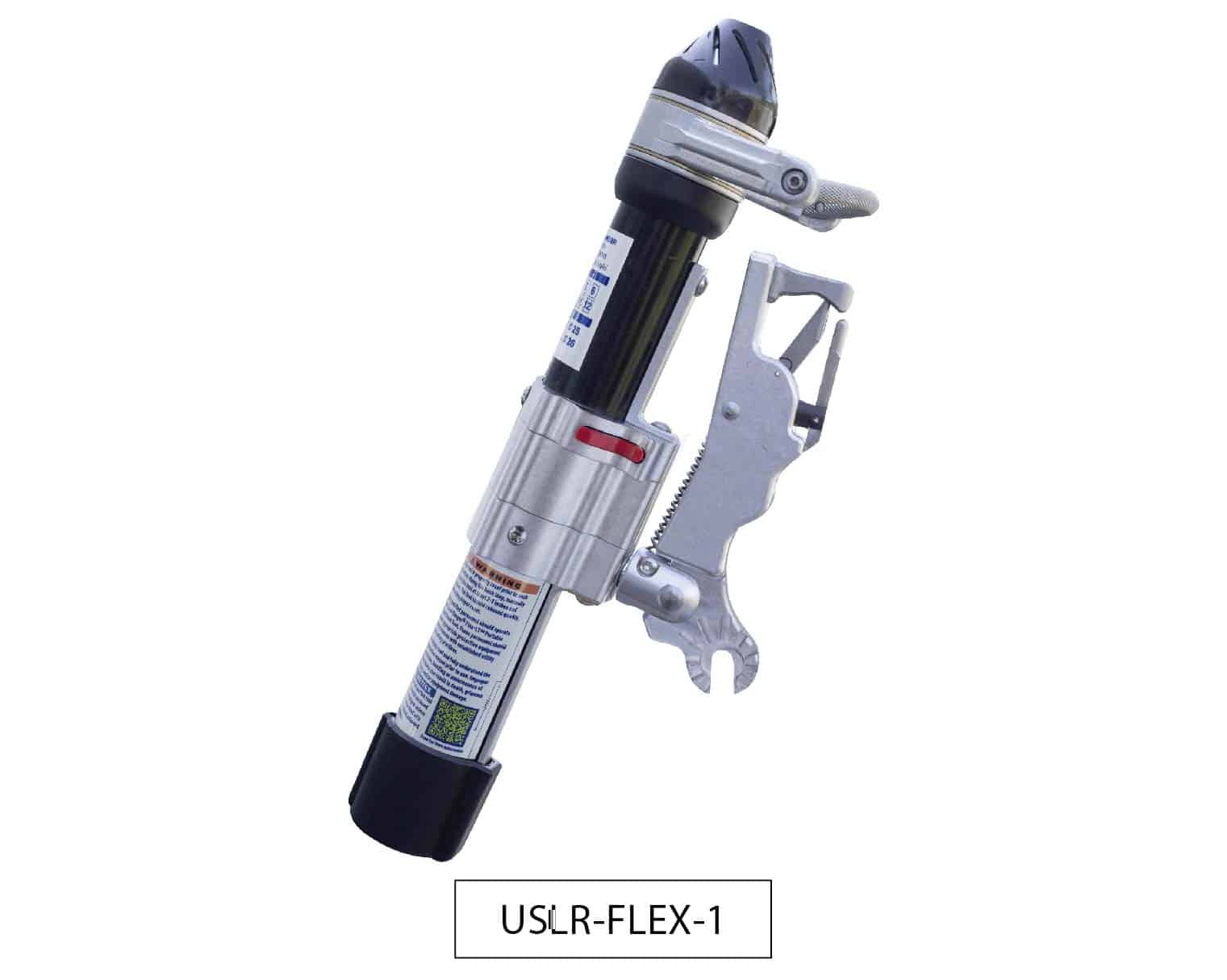

| USLR-FLEX-1-H | 27 KV WITH HARD CASE | 27 kV | 900 AMP | 4 lb 10 oz |

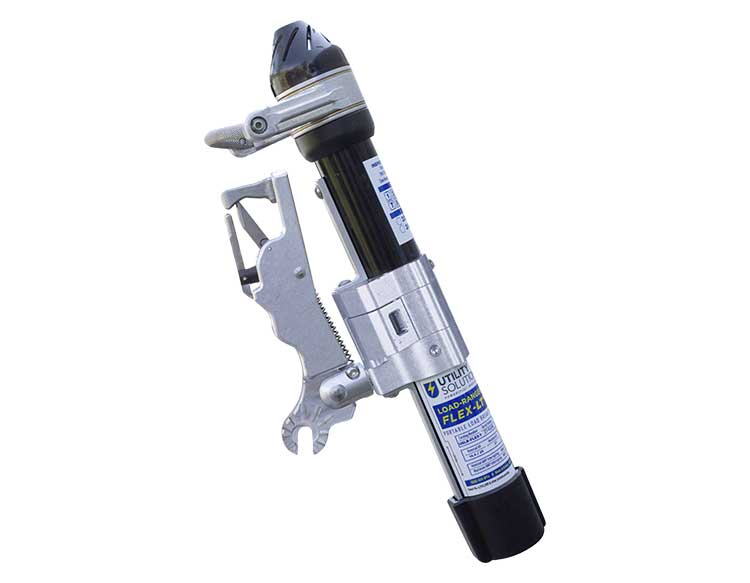

| USLR-FLEX-1-C-H | 27 KV WITH COUNTER & HARD CASE | 27 kV | 900 AMP | 4 lb 10 oz |
| USLR-FLEX-2-H | 38 KV WITH HARD CASE | 38 kV | 900 AMP | 5 lb 5 oz |
| USLR-FLEX-2-C-H | 38 KV WITH COUNTER & HARD CASE | 38 kV | 900 AMP | 5 lb 5 oz |

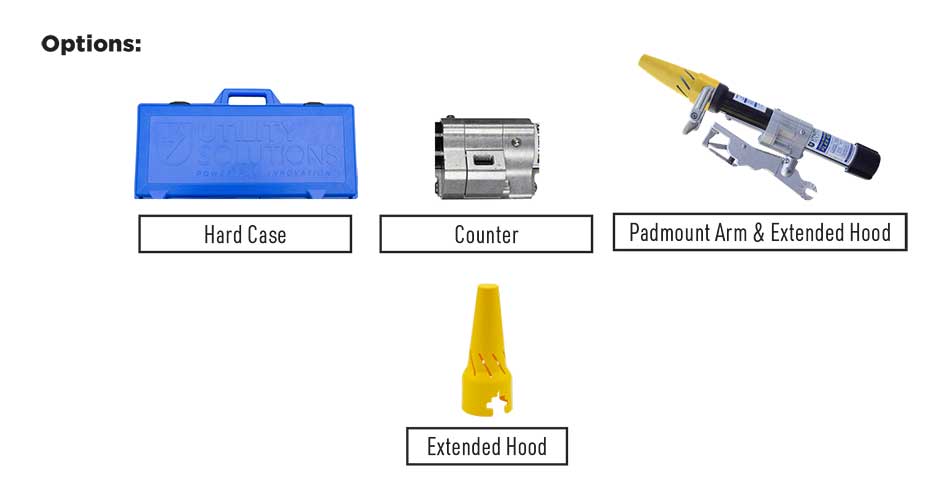

Padmount Arm
| ITEM NUMBER | DESCRIPTION | MAXIMUM VOLTAGE | MAXIMUM AMPERAGE | WEIGHT |
|---|---|---|---|---|
| USLR-FLEX-1-P-H | 27 KV WITH PADMOUNT ARM, EXTENDED HOOD & HARD CASE | 27 kV | 900 AMP | 5 lb 5 oz |
| USLR-FLEX-1-C-P-H | 27 KV WITH COUNTER, PADMOUNT ARM, EXTENDED HOOD & HARD CASE | 27 kV | 900 AMP | 5 lb 5 oz |
For support with legacy LOAD-RANGER® products, please follow the link below:
