Overhead Grounds-Trainer™
Item numbers: GNDS-001, GNDS-001 Case

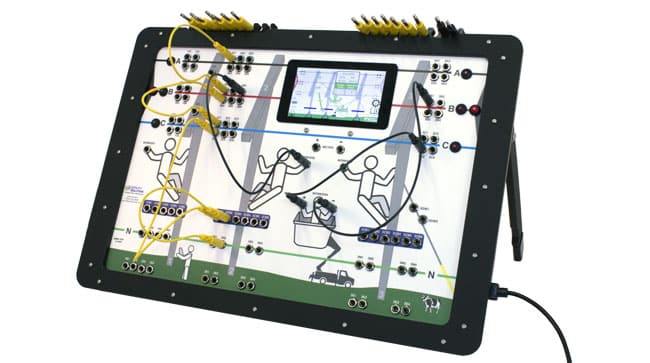

The Overhead Grounds-Trainer™ is a portable personal protective grounding simulator that offers a hands-on learning environment for all levels of line-workers, safety & training instructors, engineers, and other utility personnel.
Personal Protective Grounding Simulator
The Overhead Grounds-Trainer™ provides an immersive learning experience for complex concepts. The simulator also allows for recreating field scenarios using interactive disconnect switches and source buttons.
Demonstrate complex concepts:
- Distribution of Fault Currents
- Ground Potential Rise
- Step & Touch Potential
- Soil Resistivity
- Resistance of Personal Protective Ground Sets (PPG)
Real world variables:
- System Voltages
- PPG & Connection Quality
- Soil Type & Temperature
- Broken Conductors
- Induction
- Backfeed
Configure multiple grounding styles and work methods:
- Shunt vs Umbrella Configurations
- Single Point Grounding
- Bracket Grounding
- Equipotential Zone Grounding (EPZ)
- Equipment Grounding
- Parallel Grounds
| MODEL | WIDTH | HEIGHT | DEPTH | WEIGHT |
|---|---|---|---|---|
| GNDS-001 | 27.5″ | 19″ | 3.5″ | 18 lb |
| GNDS-001 Case | 31" | 22" | 8.5" | 21 lb |
How To Order
| ITEM NUMBER | DESCRIPTION |
|---|---|
| GNDS-001-H | OVERHEAD GROUNDS-TRAINER™ SIMULATOR WITH HARD CASE |
| GNDS-001-S | OVERHEAD GROUNDS-TRAINER™ SIMULATOR WITH SOFT CASE |
| GNDS-001-LEADSET | OVERHEAD GROUNDS-TRAINER™ SIMULATOR SET OF LEADS |
