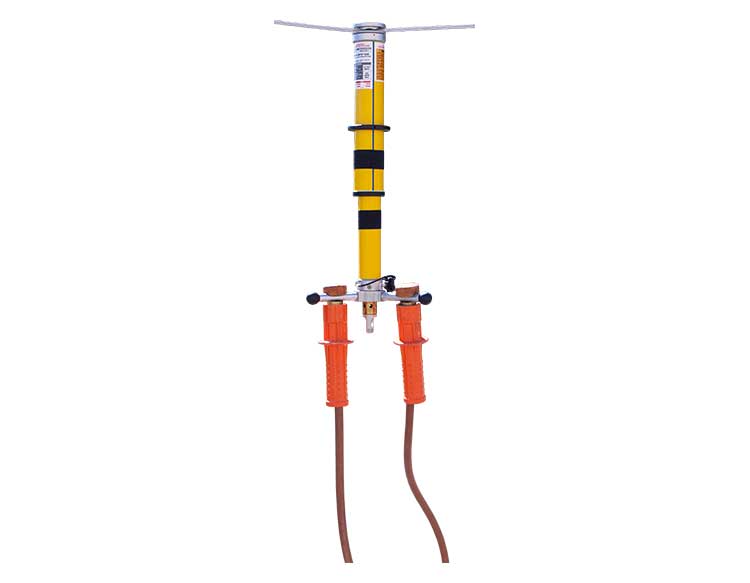

BREAK-SAFE® 600
Item numbers: USBS-600-1
Portable 27 kV / 600 amp switch for high-current load break, load pick-up, and continuous current duty applications. Configured with a floating head for easier gloved installation and removal.
Rated 27 kV/600 amps
The BREAK-SAFE® 600 is a portable switch rated 27 kV / 600 amps for high current applications such as Load Break, Load Pick-Up, and Continuous Current Duty.
The extra large clamp is capable of handling all wire sizes up to nearly 3.5" diameter. Dual conductor bars allow parallel jumpers to reach the 600 amp rating.
*The BREAK-SAFE® 600 model requires product verification to order. Please complete this form if you are ordering this model.
How To Order
| ITEM NUMBER | DESCRIPTION | SYSTEM VOLTAGE | RATING | WEIGHT | CLOSED LENGTH | OPEN LENGTH |
|---|---|---|---|---|---|---|
| USBS-600-1 | 600 AMP WITH FLOATING HEAD | 27 kV | 600 AMP | 12 lb 3 oz | 33" | 40.5" |
| CONDUCTOR SIZE | up to 3.5" dia. | |||||
